MODS:

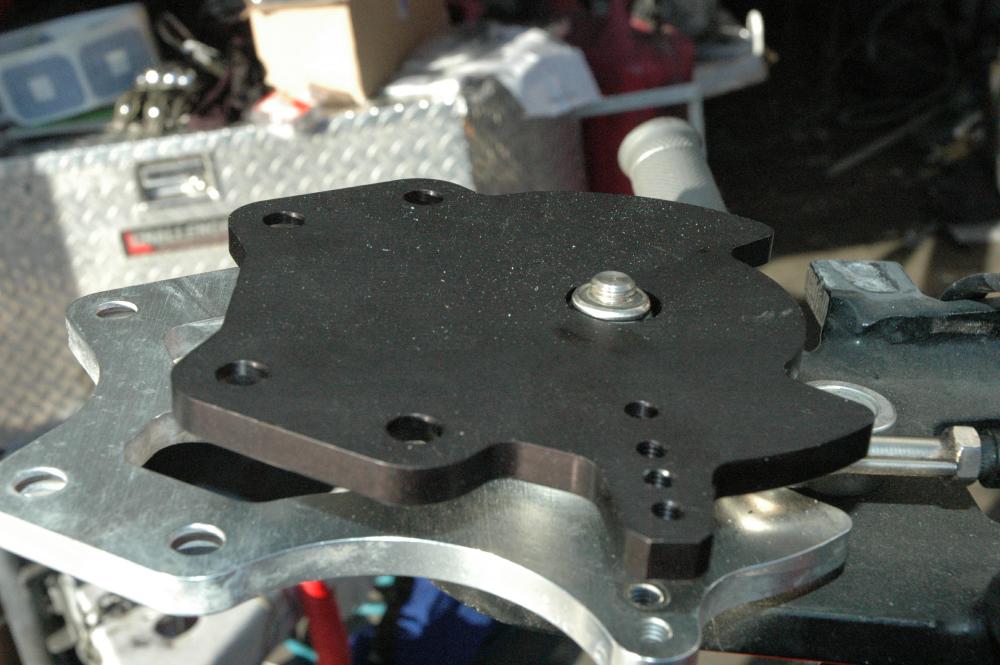

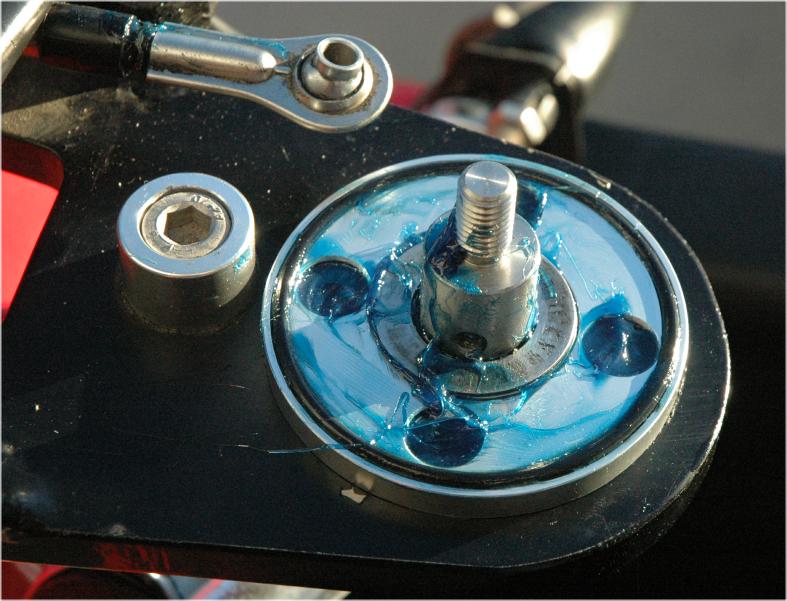

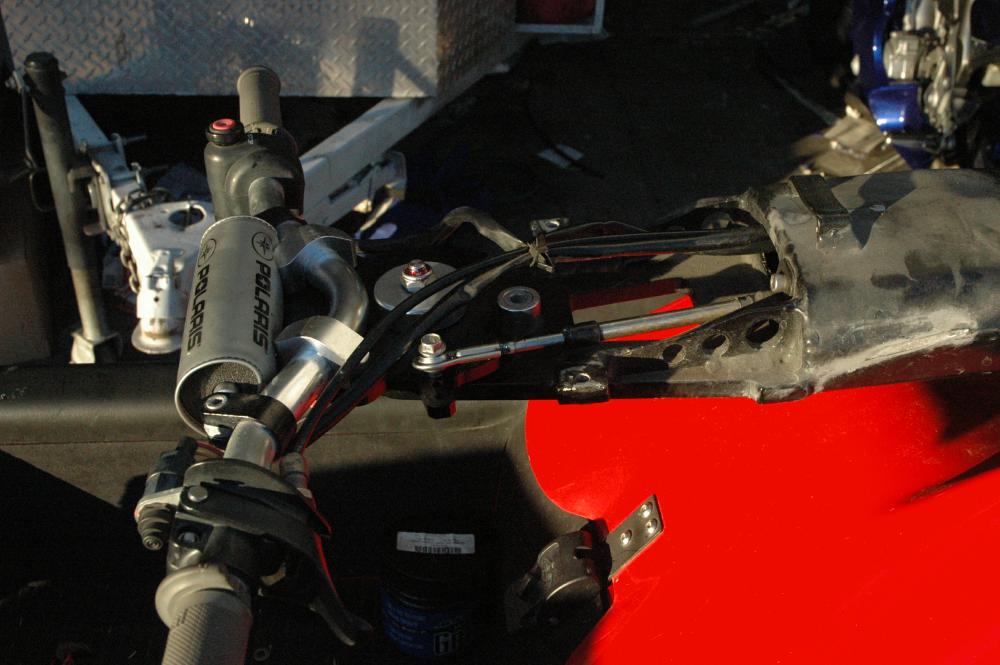

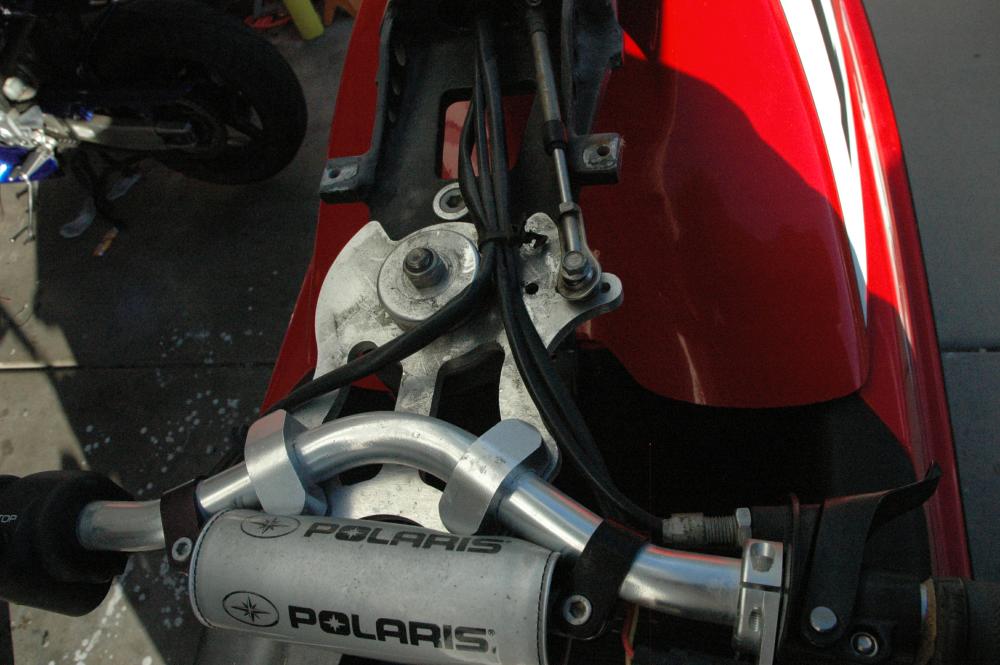

1" shorter Blowsion Turnplate.

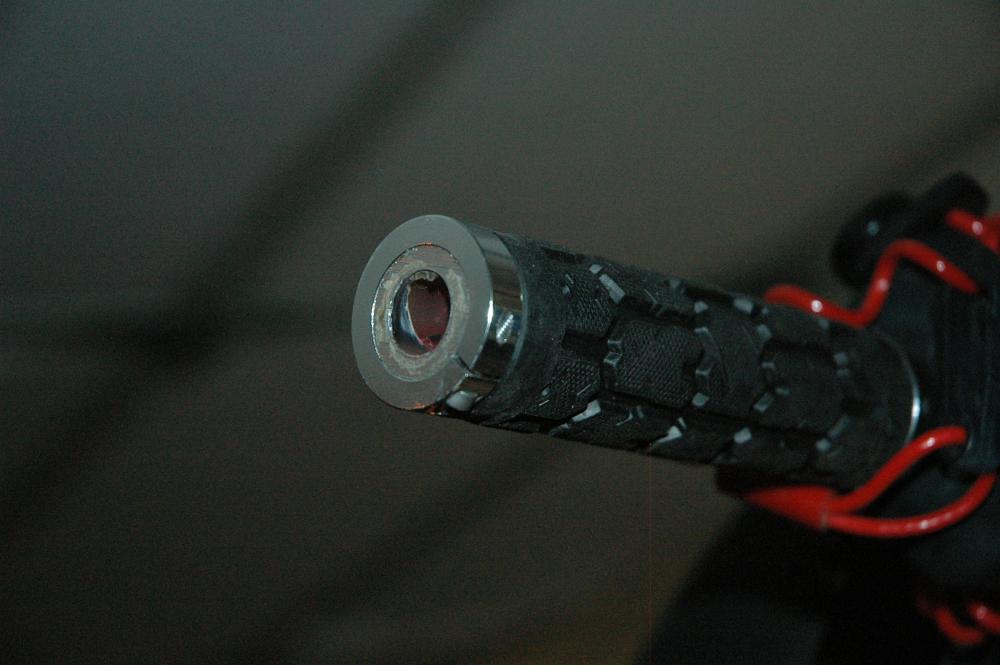

ODI Rogue Grips.
Watcon Primer with choke removal.
Watcon Pole spring.
Watcon Tow Strap.
SPECS:
Fuel Tank 4.5 (17.0) U.S. gallons/L
Rider Capacity/Rider Weight Limit 1 person/225 (102) lbs/kg
Total Weight Capacity 225 (102) lbs/kg
Total Length 90.0 (228.6) in/cm
Width 29.5 (74.9) in/cm
Height 29.0 (73.7) in/cm
Dry Weight 330 (150) lbs/kg
Hull Design Double Concave Wammer - V
Hull Material/Process Fiberglass Reinforced Composite
Top Deck Material/Process Fiberglass Reinforced Composite
Front Storage Capacity NONE
Colors
Major Colors Havasu Red, Black w/White  Accent Colors White w/Silver/Black
  Engine

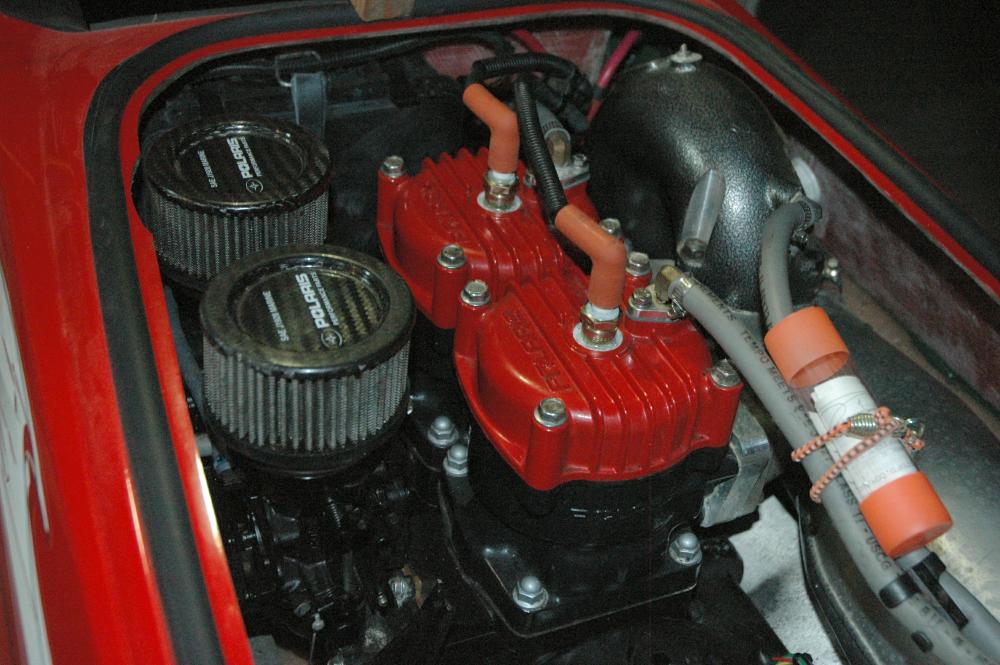

Engine Type, In-line Polaris Marine 777
Induction Type Case Reed
Exhuast System Factory B Pipe
Lubrication Pre-mix 40:1 Fuel/Oil Ratio
Engine Cylinders 2
Bore x Stroke 84 x 70 mm x mm
Engine Displacement 777 cc
Rated Horsepower 100
RPM Limiter Operation 7200 RPM
Gas Type 87-89 octane unleaded

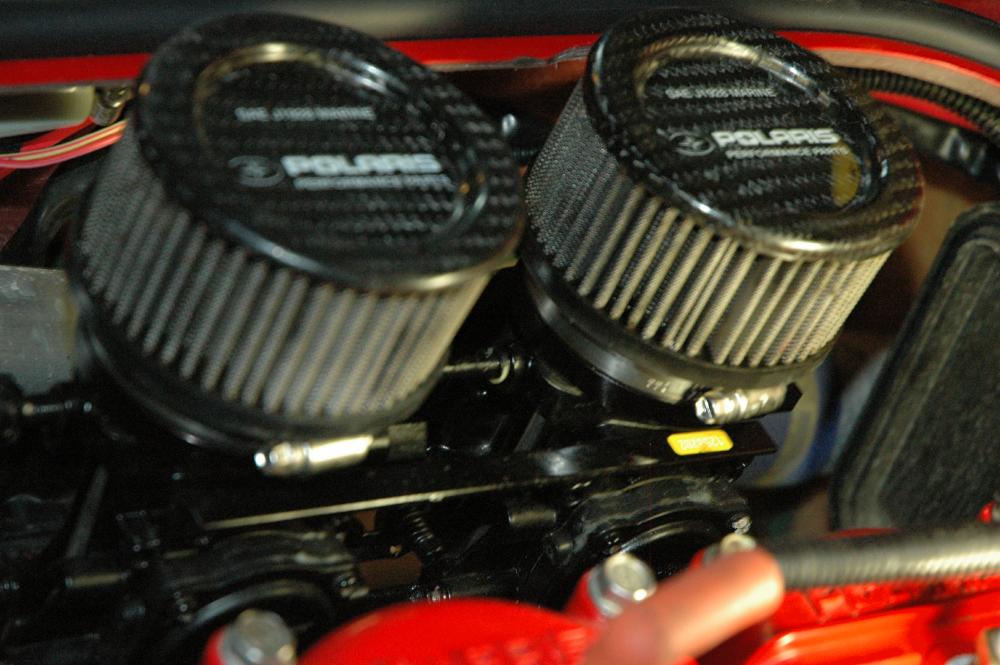

Fuel Delivery 2-40mm Keihin LE w/Accel Pump
Intake Type Reed Valve
Engine Cooling Water cooled, thermostat pop off, self draining; direct from propulsion
Ignition System Digital CDI, Flywheel Mag.
  Propulsion

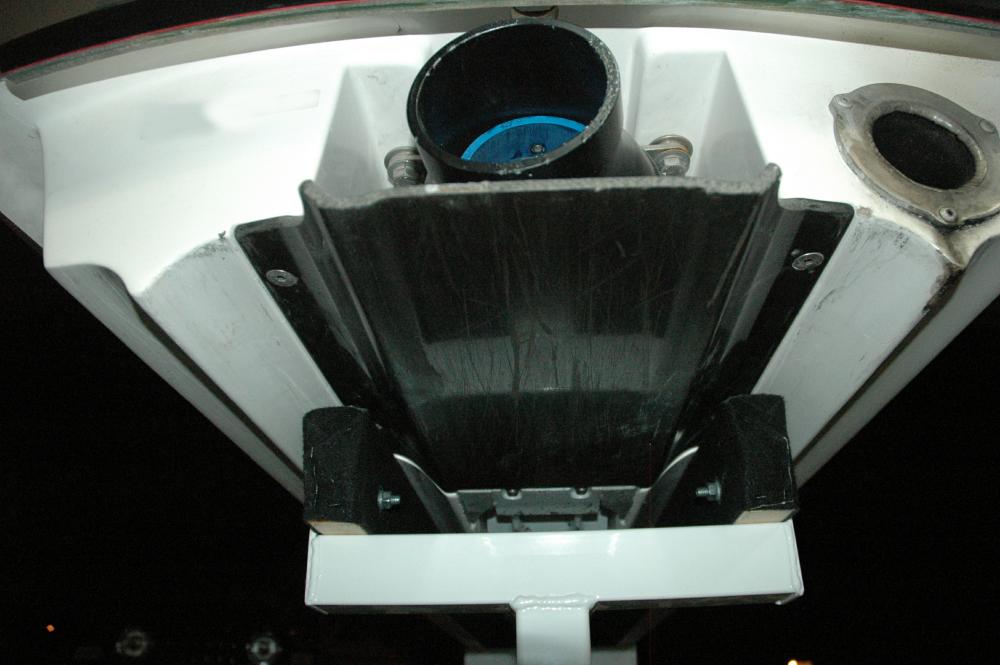

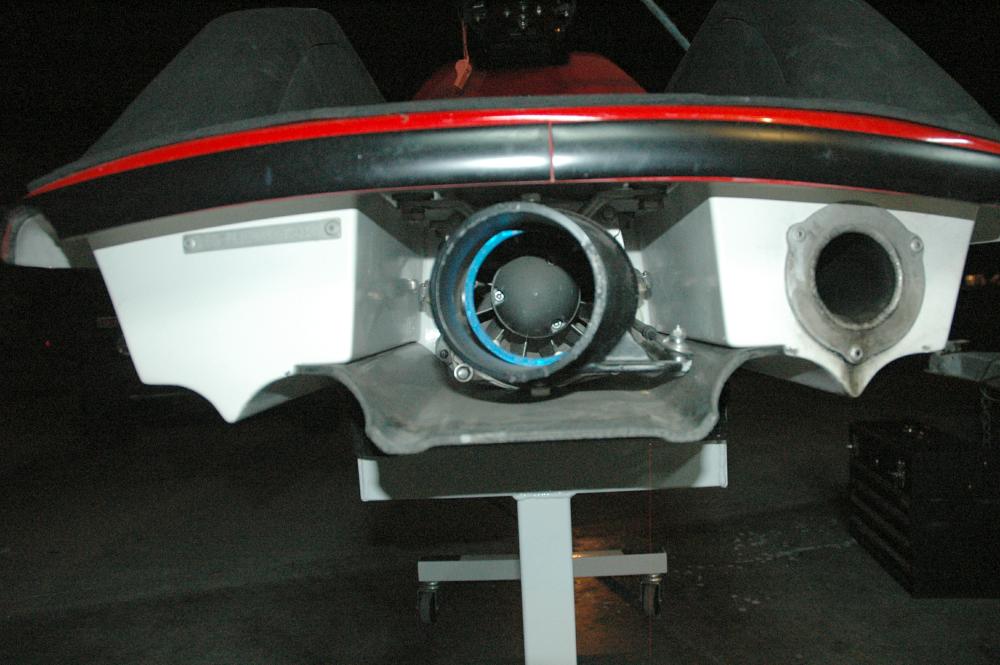

Jet Pump Type Aggressor Single Stage Axial Flow 12 Vane Stainless Stator
Impeller, Stainless Steel, 3 Blade Progressive Pitch, Radial Camber
Throttle Finger Trigger/Reversible
Bilge Pump Electric, manual override

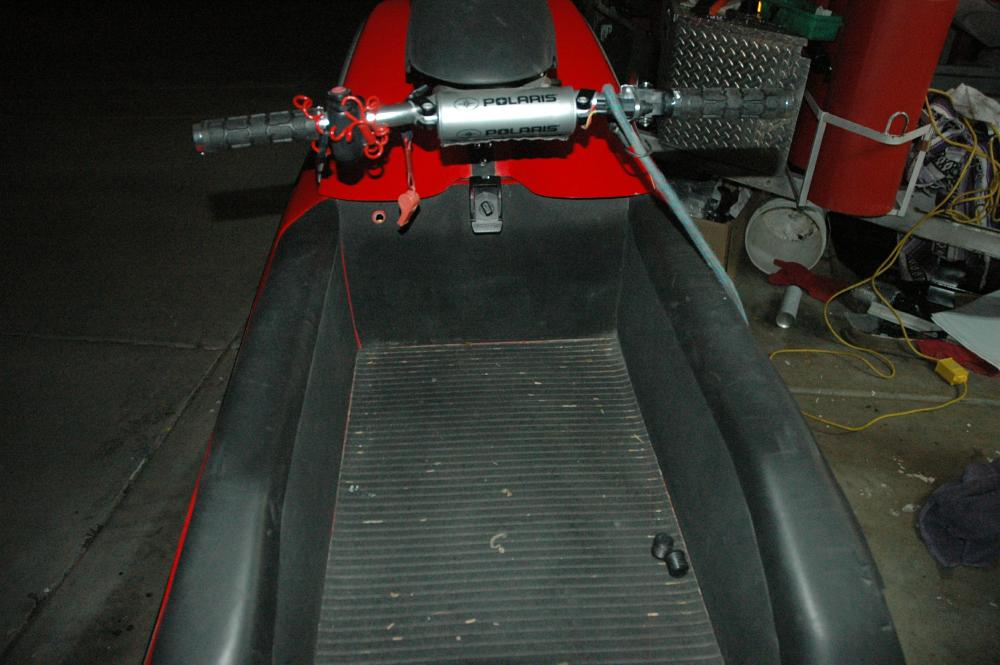

Footwell Pads Hydro-Turf™
