2005 Jeep Unlimited Rubicon Stock Specifications

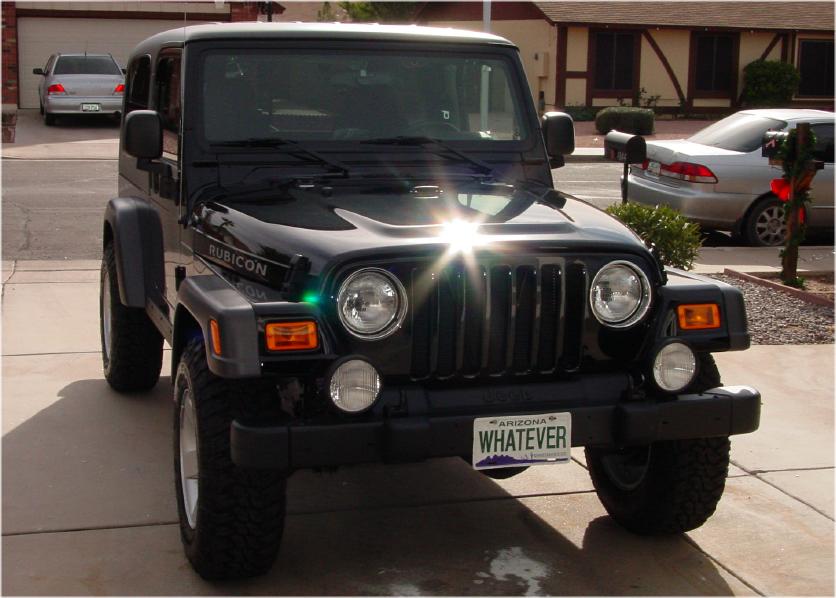

2005 Jeep Rubicon Unlimited

Stock Specifications: Exterior:
Black with Grey top and flares
Wheelbase [in]=103.4
Overhang - Front [in]=24.1
Ground Clearance - Approach Angle [DEG]=44.9
Overall Height - With Soft Top [in]=72.1
Track - Front [in]=59.5
Ground Clearance - Breakover Angle [DEG]=25.4
Overall Length [in]=167.0
Overhang - Rear [in]=35.2
Turning Diameter (curb-to-curb) - Turning Right [ft]=36.0
Track - Rear [in]=59.5
Overall Height - With Hard Top [in]=70.9
Overall Width [in]=68.2
Turning Diameter (curb-to-curb) - Turning Left [ft]=36.0
Ground Clearance - Departure Angle [DEG]=33.9
Ground Clearance=10.3

Warranty:
Powertrain - Miles=70000
Outer Body Rust Through - Miles=100000
Months=36
Outer Body Rust Through - Months=60
Powertrain - Months=84
Miles=36000

Interior Dimensions:
Gray with cloth high back seats
Shoulder Room - Rear [in]=57.3
Hip Room - Rear [in]=43.5
Seating Capacity - Optional=4
Hip Room - Front [in]=51.8
Head Room - Rear [in]=40.4
Seating Capacity - Maximum=4
Passenger Interior Volume [ft3]=93.8
Head Room - Front [in]=42.2
Leg Room - Front [in]=40.9
Trunk/Cargo Area Lift Over Height [in]=25.4
Leg Room - Rear [in]=37.0
Seating Capacity - Standard=4
Cargo Capacity - Behind 2nd Row Seat [ft3]=29.5
Shoulder Room - Front [in]=50.8
Cargo Capacity - Behind 1st Row Seat [ft3]=64.0

Basics:
Suspension Type - Front=Live Axle
Fuel Economy - City [mpg]=16.0
Top=Convertible
Suspension Type - Rear=Live Axle
Doors=2
Brake Type (Disc/Drum) - Rear=Disc
Brake Type (Disc/Drum) - Front=Disc
EPA Vehicle Classification=Sport Utility 4WD
Top - Optional Tops available=Removable Hardtop
Driveline Configuration=4WD-PT
Vehicle Type=Sport Utility
Tires - Width [mm]=245
Tires - Construction=R
Tires - Spare Tire Type=Full Size
Tires - Aspect Ratio=75
Steering=Recirculating Ball
Tires - Wheel Diameter [in]=16.0
Fuel Economy - Highway [mpg]=19.0
Tires - Type=LT

Capacities/Weights
Weight Distribution - Automatic Transmission - % Front=49.0
Payload Capacity - Maximum [lb]=750
Weight Distribution - Automatic Transmission - % Rear=51.0
Base Curb Weight - with Automatic Transmission [lb]=4013
Towing Capacity - Maximum (Properly Equipped) [lb]=3500
Weight Distribution - Manual Transmission - % Rear=49.0
Fuel Tank Capacity [gal]=19.0
Gross Vehicle Weight Rating (GVWR) - Maximum [lb]=4600
Weight Distribution - Manual Transmission - % Front=51.0
Base Curb Weight - with Manual Transmission [lb]=3977
Gross Vehicle Weight Rating (GVWR) - Standard [lb]=4600

Engine/Transmission:
4.0L Power Tech I-6
190 horsepower at 4,600 RPM
235 pounds-feet of torque at 3,200 RPM.
4-Speed Automatic Transmission

Axles:
Heavy Duty Dana 44/226mm Front/Rear Axles with "Tru-Lock" Differentials with 4:10 gears.

Transfer Case:
4:1 Rock-Trac Part-Time 4WD System

Wheels/Tires:
16" x 8.0" "MOAB" Silver Wheels
Goodyear LT245/75R16E Black Side Wall 31" MT/R tires
